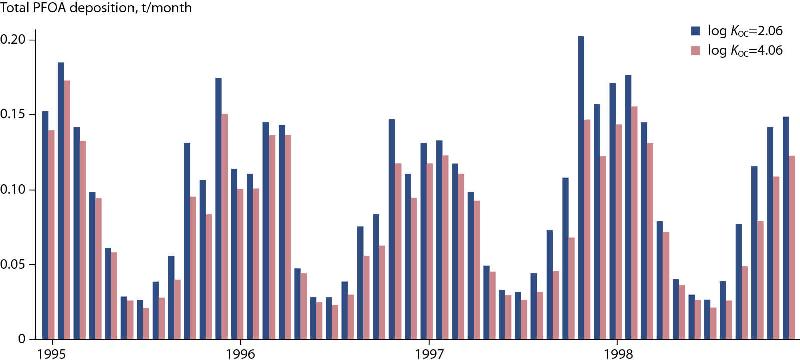

Figure 2.4 Four-year time series of monthly sums of total (wet + dry) deposition of PFOA to the Arctic predicted by the MPIMCTM model (Stemmler and Lammel, 2010). The blue and pink bars represent modelled PFOA deposition assuming a log organic carbon partition coefficient of 2.06 and 4.06, respectively.
