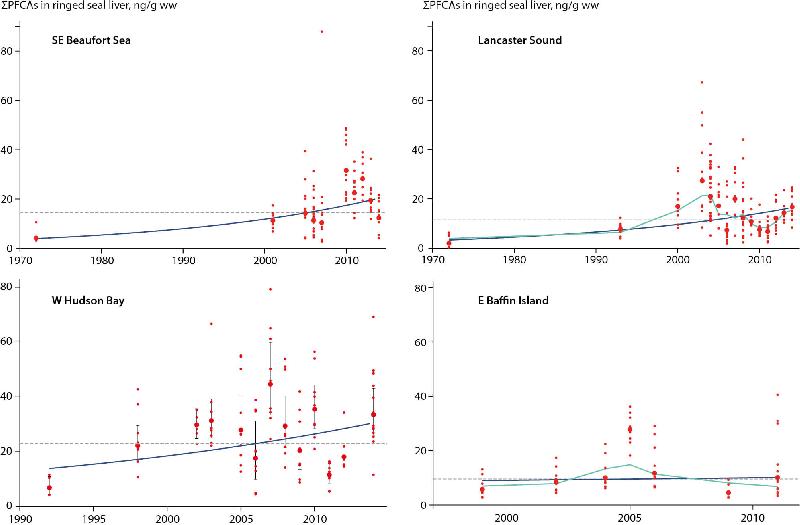

Figure 2.26 Temporal trends of total PFCAs (sum C7–C14-PFCAs) in ringed seal liver from four locations (SE Beaufort Sea= Sachs Harbour and Ulukhaktok; Lancaster Sound=Resolute, Grise Fiord and Arctic Bay; W. Hudson Bay = Arviat; E Baffin Is = Pangnirtung, Pond Inlet and Qikiqtarjuaq) in the Canadian Arctic (Muir et al., 2014). Blue lines represent trend; green lines represent 2-year moving average; larger red symbols and vertical lines are annual means and standard deviations.
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2016: Chemicals of Emerging Arctic Concern
Page number:
24
Type:
Graph
Caption:
Figure 2.26 Temporal trends of total PFCAs (sum C7–C14-PFCAs) in ringed seal liver from four locations (SE Beaufort Sea= Sachs Harbour and Ulukhaktok; Lancaster Sound=Resolute, Grise Fiord and Arctic Bay; W. Hudson Bay = Arviat; E Baffin Is = Pangnirtung, Pond Inlet and Qikiqtarjuaq) in the Canadian Arctic (Muir et al., 2014). Blue lines represent trend; green lines represent 2-year moving average; larger red symbols and vertical lines are annual means and standard deviations.
Location:
Canada, Nunavut, Lancaster Sound, Beaufort, Hudson Bay, Baffin Island
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
