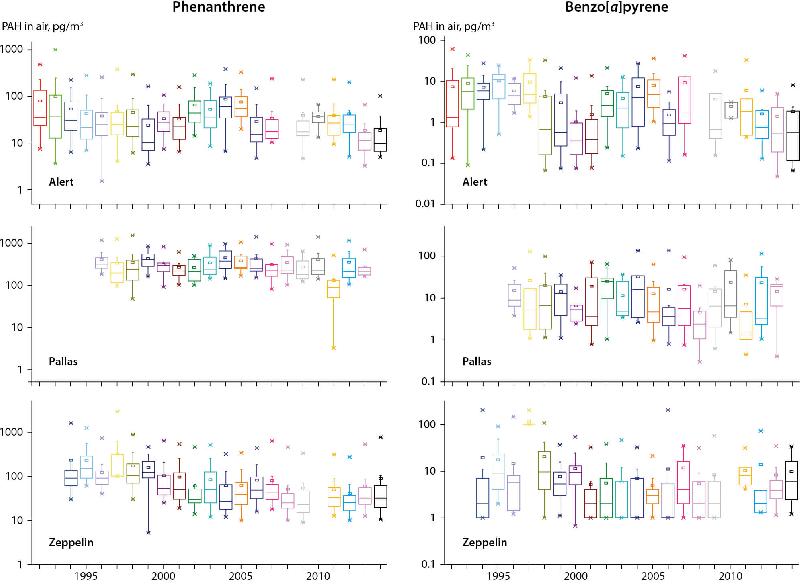

Figure 2.112 Time series of phenanthrene and benzo[a]pyrene observed in air at Alert, Pallas and Zeppelin. The boxes represent the 25th and 75th percentiles annually. The lines in the boxes and square symbols represent the annual median and annual mean, respectively. All outliers beyond the whiskers are shown individually. Yu et al. (in prep).
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2016: Chemicals of Emerging Arctic Concern
Page number:
224
Type:
Graph
Caption:
Figure 2.112 Time series of phenanthrene and benzo[a]pyrene observed in air at Alert, Pallas and Zeppelin. The boxes represent the 25th and 75th percentiles annually. The lines in the boxes and square symbols represent the annual median and annual mean, respectively. All outliers beyond the whiskers are shown individually. Yu et al. (in prep).
Location:
Alert, Zeppelin
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
