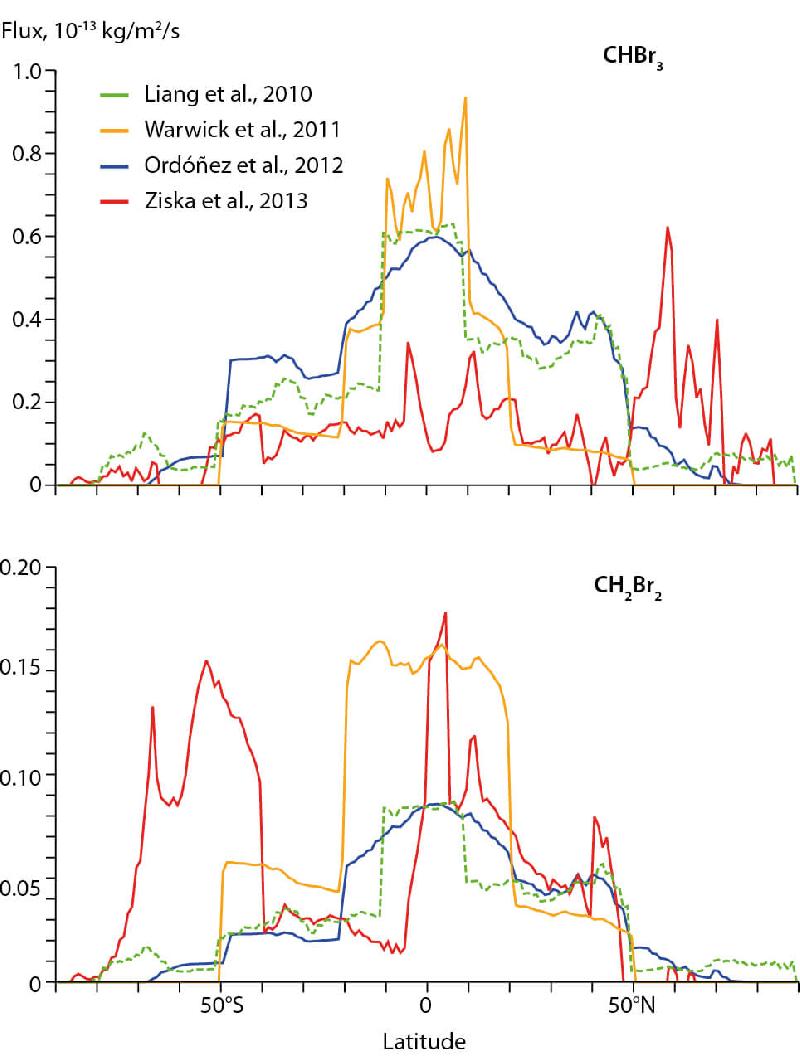

Figure 2.118 Zonally averaged global emission source strengths for CHBr3 and CH2Br2, estimated from three top-down models (Warwick et al., 2011 = Pyle et al., 2011 update of Warwick et al., 2006; Liang et al., 2010; Ordóñez et al., 2012) and one bottom-up model (Ziska et al., 2013). Graphic from Hossaini et al. (2013).
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2016: Chemicals of Emerging Arctic Concern
Page number:
245
Type:
Graph
Caption:
Figure 2.118 Zonally averaged global emission source strengths for CHBr3 and CH2Br2, estimated from three top-down models (Warwick et al., 2011 = Pyle et al., 2011 update of Warwick et al., 2006; Liang et al., 2010; Ordóñez et al., 2012) and one bottom-up model (Ziska et al., 2013). Graphic from Hossaini et al. (2013).
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
