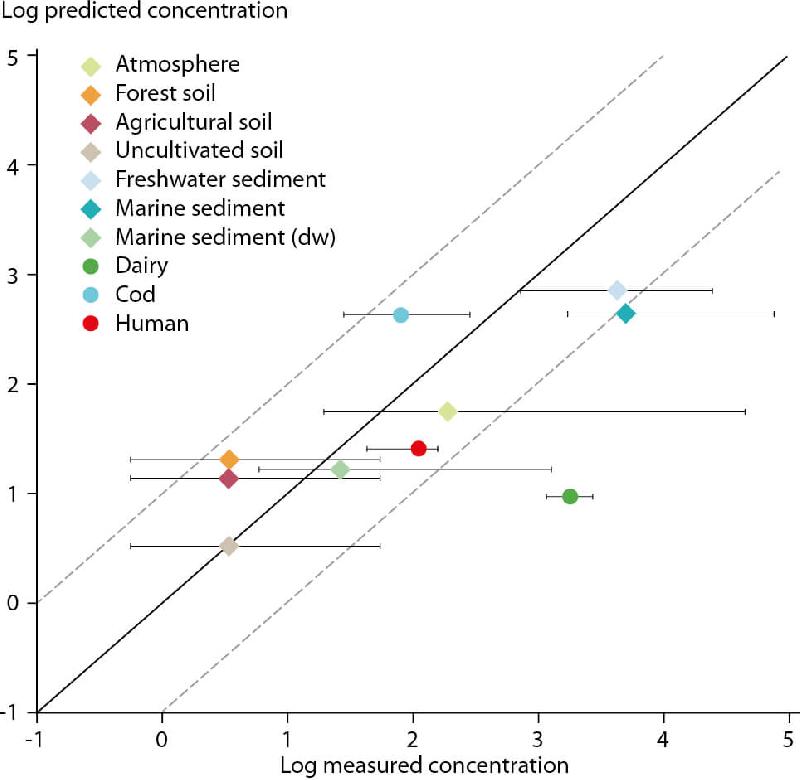

Figure 2.64 Measured versus modeled SCCP concentrations in various environmental compartments of the Nordic environment (Krogseth et al., 2013c). Error bars show the range in measured concentrations. The solid line is the one-to-one line, while the dashed lines mark deviations of one order of magnitude. Numerical concentration data and units not specified.
