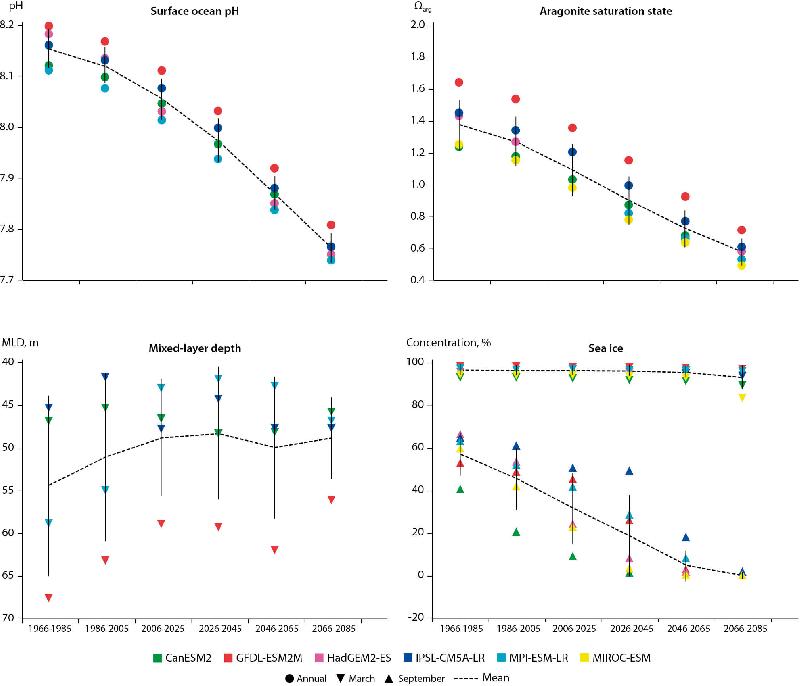

Figure A6.7 Multi-model comparison of bi-decadal averages for Canada Basin (68°–79°N, 124°–160°W). Plots show projected change in annual mean surface ocean pH, annual mean aragonite saturation state, maximum mixed layer depth in March, and sea ice concentration in March and September for RCP8.5. Shown are individual model averages as well as the multi-model mean and standard deviation. Note that pH is not available for MIROC-ESM and maximum mixed layer depth in March is not available for MIROC-ESM and HadGEM2-ES. Based on Steiner et al. (2014).
