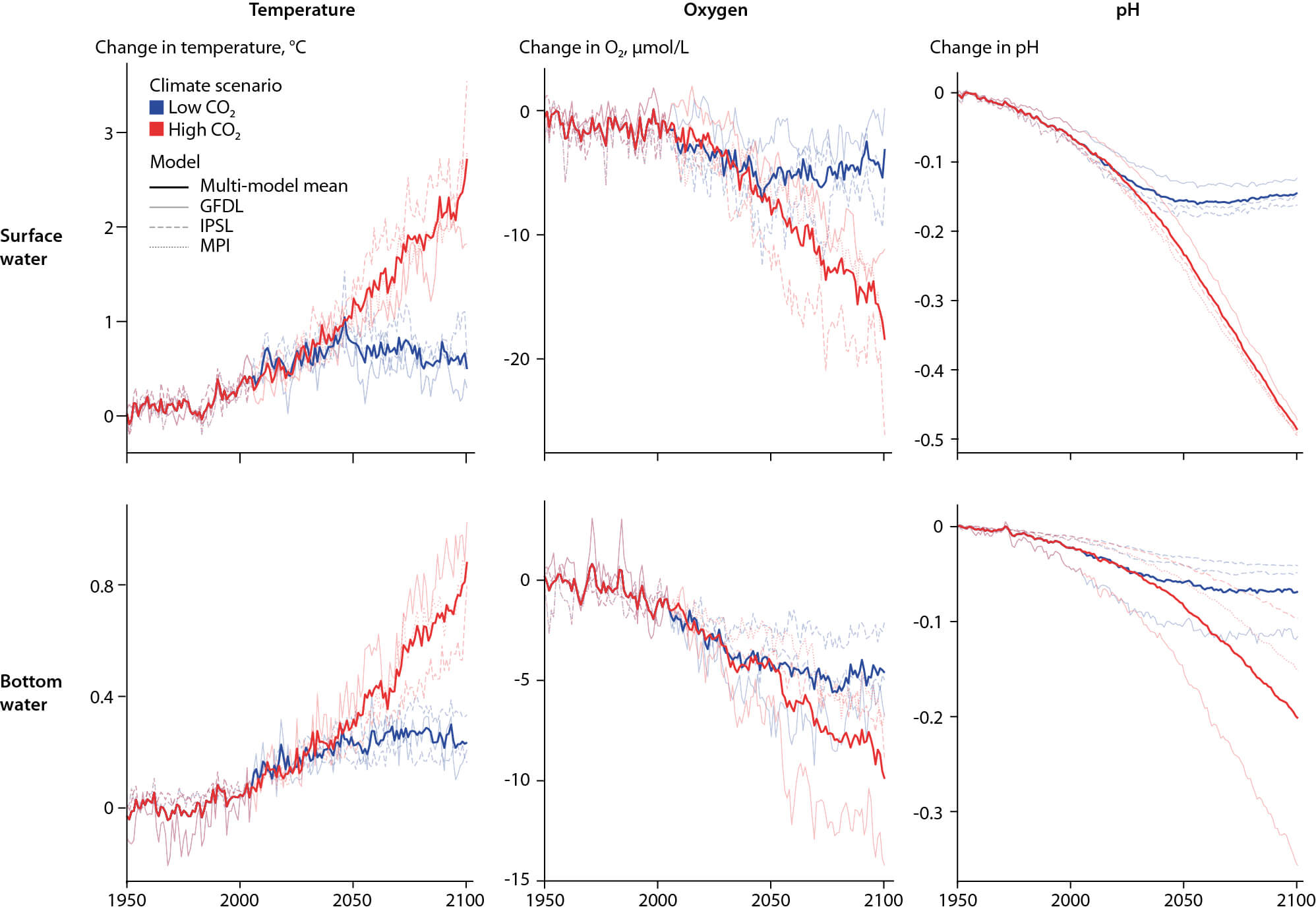

Figure A6.12 Projected changes in sea surface and deep ocean variables using three ESMs (GFDL-ESM2G, IPSL-CM5A-MR, MPI-ESM-MR). Bold lines represent multi-model averages and trajectories are relative to the 1951–1960 average. Trajectories are shown for two climate scenarios: ‘Low CO2’ where CO2 emissions are mitigated and Paris Agreement targets are met (RCP2.6, +1.5°C global sea surface temperature) and ‘High CO2’ under ‘business-as-usual’ (RCP8.5, +3.5°C).
