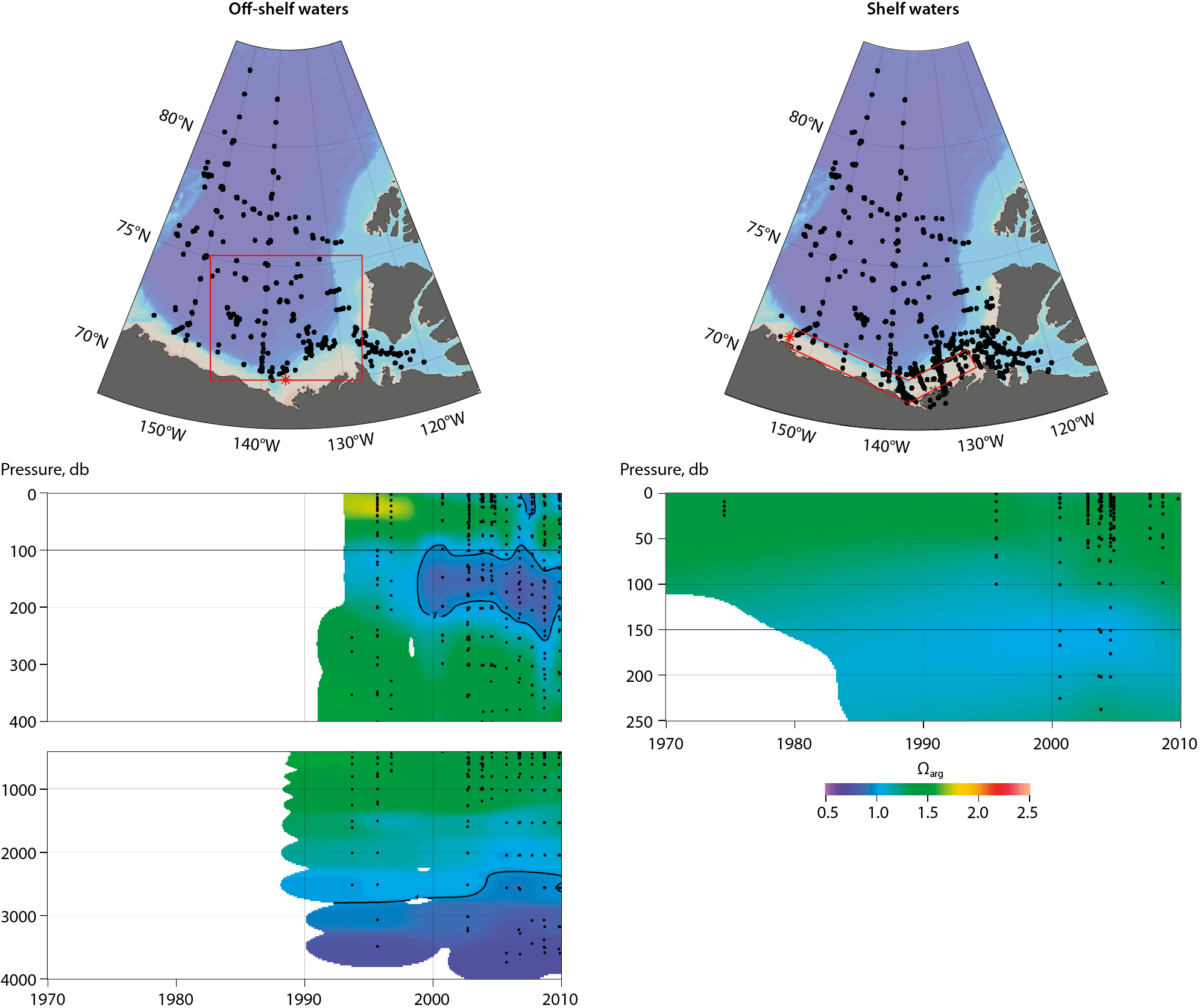

Figure 2.4 Observed evolution of aragonite saturation state Ωarg for sampling stations on and off the shelf. The black line indicates an aragonite saturation state equal to one (Ωarg = 1.0). The location plots show the distribution of observations (black dots) and respective averaging regions (red lines) for stations deeper than 250 m (off-shelf waters) and shallower than 250 m (shelf waters).
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2018: Arctic Ocean Acidification
Page number:
9
Type:
Map
Caption:
Figure 2.4 Observed evolution of aragonite saturation state Ωarg for sampling stations on and off the shelf. The black line indicates an aragonite saturation state equal to one (Ωarg = 1.0). The location plots show the distribution of observations (black dots) and respective averaging regions (red lines) for stations deeper than 250 m (off-shelf waters) and shallower than 250 m (shelf waters).
Location:
Beaufort Sea, Canada Basin, Beaufort Shelf, Canadian Polar Shelf, Beaufort Mackenzie Basin, Amundsen Gulf
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
