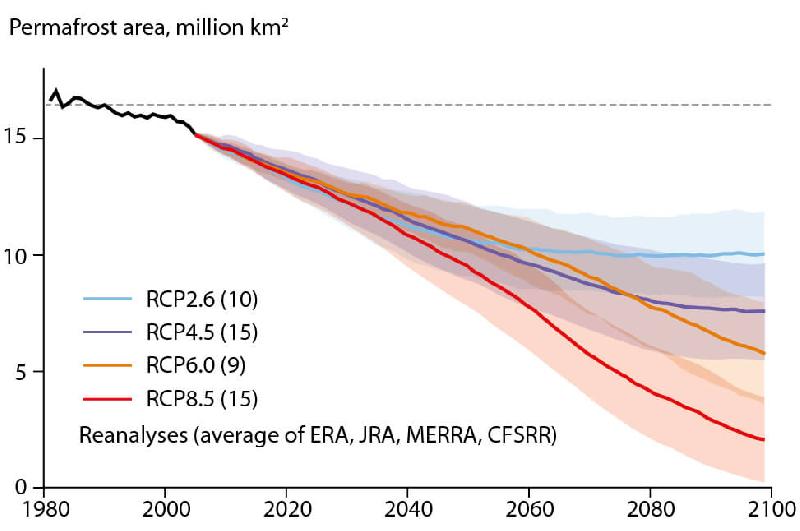

Figure 11.3 Projected change in permafrost area under different greenhouse gas scenarios; the number of models contributing to each RCP estimate is given in brackets, the shaded area is one standard deviation across the models, and the dashed black line represents the present-day total permafrost area (Slater and Lawrence, 2013).
Meta Data
Publication:
Snow, Water, Ice and Permafrost in the Arctic (SWIPA) 2017
Page number:
262
Type:
Graph
Caption:
Figure 11.3 Projected change in permafrost area under different greenhouse gas scenarios; the number of models contributing to each RCP estimate is given in brackets, the shaded area is one standard deviation across the models, and the dashed black line represents the present-day total permafrost area (Slater and Lawrence, 2013).
