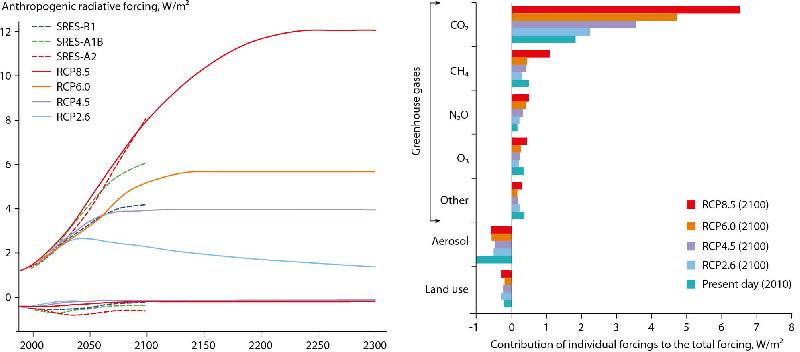

Figure 2.12 Total radiative forcing as a function of time under the RCP scenarios through 2300 (negative lines represent anthropogenic aerosol forcing) and the SRES scenarios through 2100 (left), and the contributions of individual forcings to the total forcing at present and under the RCP scenarios (right) (Collins et al., 2013).
Meta Data
Publication:
Snow, Water, Ice and Permafrost in the Arctic (SWIPA) 2017
Page number:
17
Type:
Graph
Caption:
Figure 2.12 Total radiative forcing as a function of time under the RCP scenarios through 2300 (negative lines represent anthropogenic aerosol forcing) and the SRES scenarios through 2100 (left), and the contributions of individual forcings to the total forcing at present and under the RCP scenarios (right) (Collins et al., 2013).
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
