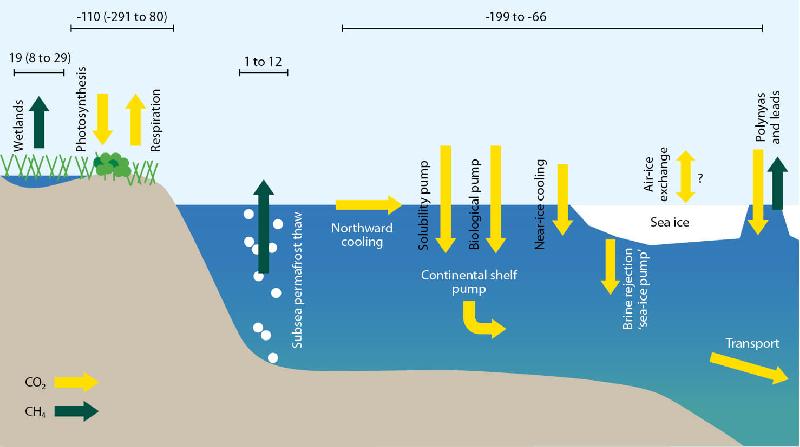

Figure 8.1 Simplified representation of those Arctic carbon fluxes that may be influenced by sea-ice retreat (Parmentier et al., 2013). Current best estimates of sink/source strengths are shown in TgC/y, where available. The uncertainty ranges of the terrestrial fluxes are shown in brackets. The arrows do not indicate the strength of each flux.
Meta Data
Publication:
Snow, Water, Ice and Permafrost in the Arctic (SWIPA) 2017
Page number:
205
Type:
Schematic
Caption:
Figure 8.1 Simplified representation of those Arctic carbon fluxes that may be influenced by sea-ice retreat (Parmentier et al., 2013). Current best estimates of sink/source strengths are shown in TgC/y, where available. The uncertainty ranges of the terrestrial fluxes are shown in brackets. The arrows do not indicate the strength of each flux.
